Content Solutions DocumentationPublished Date: September 27, 2017 Downloaded: April 1, 2026, 2:43 pm |
 |
Content Solutions Documentation |
Manufacturer Name, Brand and PN
September 27, 2017
Manufacturer Name
Description
1WorldSync Content Solutions uses a normalized manufacturer name within the DataSource database. It ensures that all variations used for manufacturer
names appear as one consistent name. For example IBM, IBM Corp., and IBM Corporation all appear as IBM. The manufacturer name is the name
of a company that the part numbers belong to. Brand name (brand logo) could be found on the device itself.
Database Structure
The manufacturer ID of a product is located in three tables:
- cds_Prod table
- cds_Atr table
- cds_Metamap table
The tables cds_Prod and cds_Atr reference a name in the table cds_Vocxx, while cds_Metamap’s “DistiID” column references a description in the table cds_Distivoc.
For the customers uploading their catalog (PULL or Catalog Base customers), these different locations hold either the 1WorldSync Content Solutions
normalized manufacturer name (cds_Distivoc) or the manufacturer name that is provided in the upload MFC file (cds_Vocxx).
MfID in the table cds_Prod and the value for attribute A00630 “Header / Manufacturer” in the cds_Atr table both point to the same vocabulary
entry in cds_Vocxx, this entry in cds_Vocxx provides the same manufacturer name as was uploaded in the MFC files.
Returning 1WorldSync Content Solutions Manufacturer Name
The customers who would like to use the 1WorldSync Content Solutions manufacturer name can join against the cds_Metamap table. The DistiID, which
links to the vocabulary table, begins with either a C or a Z. The Z indicates that the ID is linking to a manufacturer rather than a distributor.
Using this built-in logic a simple query can be used to retrieve the 1WorldSync Content Solutions manufacturer name.

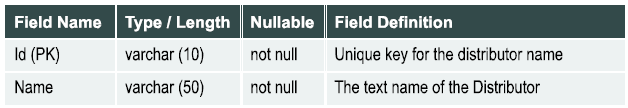

cds_Distivoc
Use the cds_Metamap table if you would like to link the Manufacturer ID to a product ID.
|

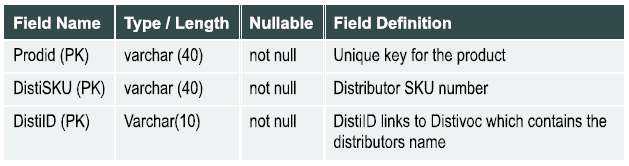

cds_Metamap |
SELECT DISTINCT cds_distivoc.id,
cds_distivoc.NAME
FROMcds_metamap
JOIN cds_distivoc
ON cds_metamap.distiid = cds_distivoc.id
WHERE cds_metamap.distiid LIKE ‘Z%’
Brand
Description
The brand name is the name that could be found on the device itself. Some manufacturers use the company name or a part of the name or it’s acronym (Hewlett-Packard->
HP, ASUSTeK COMPUTER -> Asus) as a product brand; some manufacturers may have several brands.
If a manufacturer resells the products of another manufacturers with their own part numbers, in this case the brand of the original manufacturer is used
for the product. For example, if HP sells Microsoft operating system then the brand would be Microsoft.
Database Structure
The brand name is provided as a searchable attribute A00606 “Header / Brand” in the tables cds_Atr and cds_Vocxx.
cds_Atr
cds_Vocxx
SELECT a.prodid,
v.text AS Brand_Name
FROMcds_atr a
JOIN cds_vocxx v
ON a.valid = v.id
WHERE a.prodid = ‘PRODUCTID’
AND a.atrid = ‘A00606’
Manufacturer Part Number
Description
A manufacturer part number is a combination of numbers, letters and symbols that has been given to a product by the manufacturer. This is one of the unique product identifiers within the manufacturer’s catalog.
Database Structure
The manufacturer part number is located in the table cds_Prod.

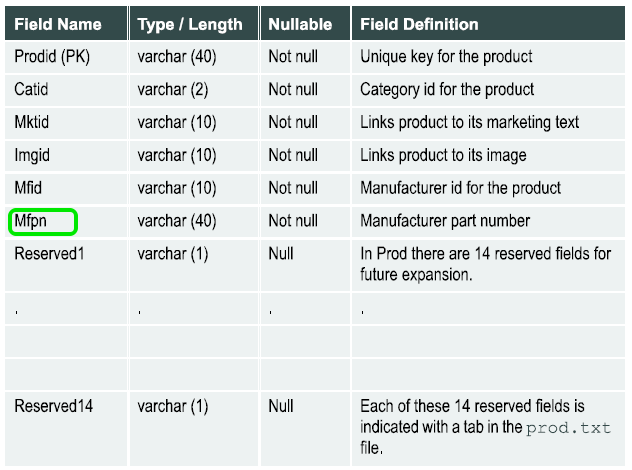

cds_Prod
SELECT p.prodid,
p.mfpn AS Manufacturer_PN
FROMcds_prod p
WHERE p.prodid = ‘PRODUCTID’
